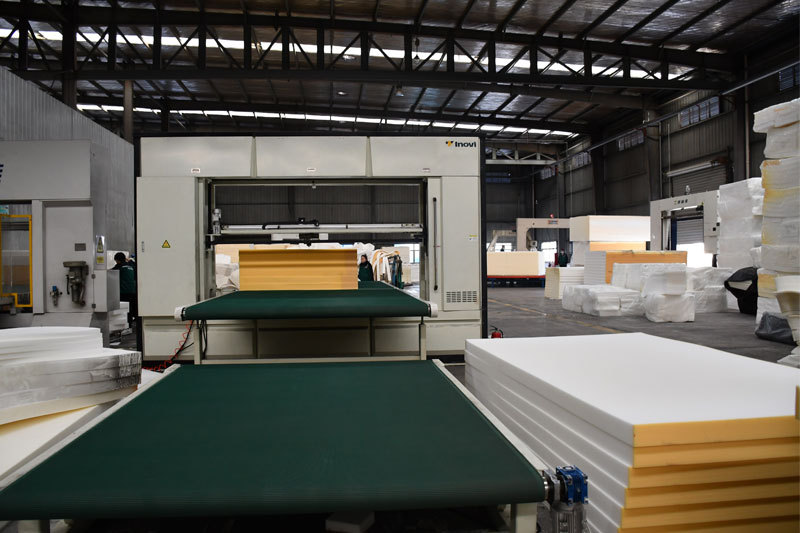

Cnc Countour Foam Block Cutting Machine

Contour  Foam Cutting machine (Circle Blade Type)

Techinical Specification:

Size : L 6.5M * W 3.5M * H 2.5M

Sponge Size: L 3M * W 2.2M * H 1.3M

Rotation Angle: 360 degrees rotation

Cutting Speed:0-40m/min

CNC: Computer Control

Drawing software: Autocad 2010version

Blade Type: Horizontal and vertical double knife ring type

Operation System: Win7

Precision of processing:±0.5

Feature:

Convert the cutting code according to the graphic outline, and control the equipment to cut the required products according to the cutting code

Scope of application: automobile industry, furniture industry, packaging industry, daily necessities, etc.

The ring cutter is a high-efficiency contour cutting machine suitable for elastic foam materials. Because the cutting blades of this equipment circulate at high speed, it has a higher cutting speed and a smoother cutting surface. It is suitable for serrated blades and vibrations. The frequency is higher, the cutting speed is fast, and there is no dust.

The CAD drawing software is used to draw the required cutting graphics, and the computer software automatically completes the conversion of the graphics to the control path cutting code, thereby greatly reducing the workload and improving work efficiency.

The computer can simulate the processing path to ensure the accuracy of each cut.

The layout can be optimized on the computer, making full use of the foam materials that need to be cut, saving costs.

Application:

This machine is mainly operated by computer numerical control, cutting with a circular drive knife, used for 2D/3D arc cutting of soft materials such as sponge, foam, PU, PE, PVC, etc.

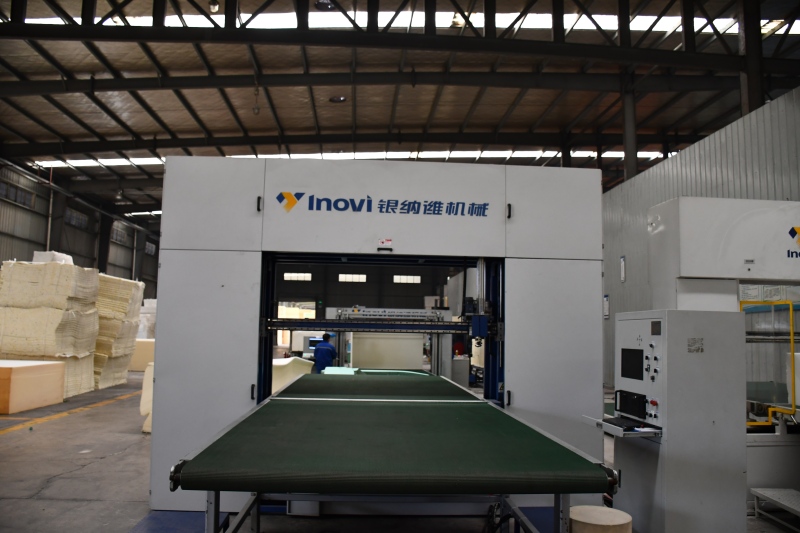

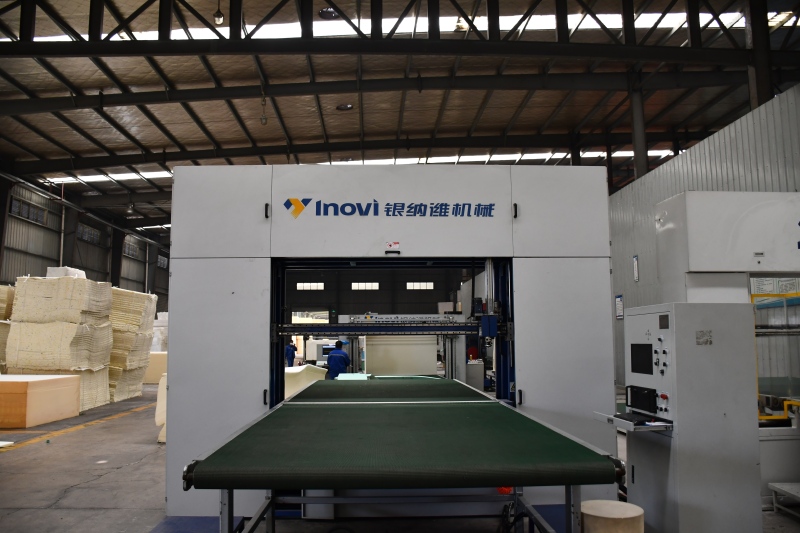

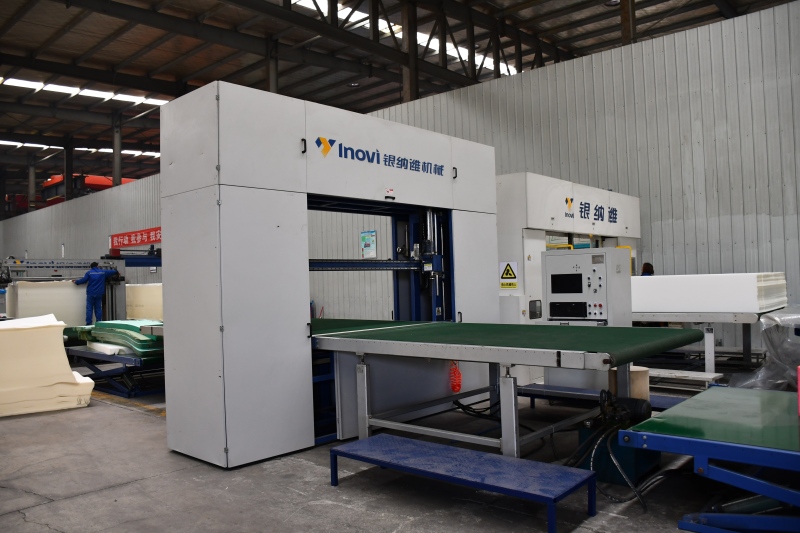

product detail presentation.
